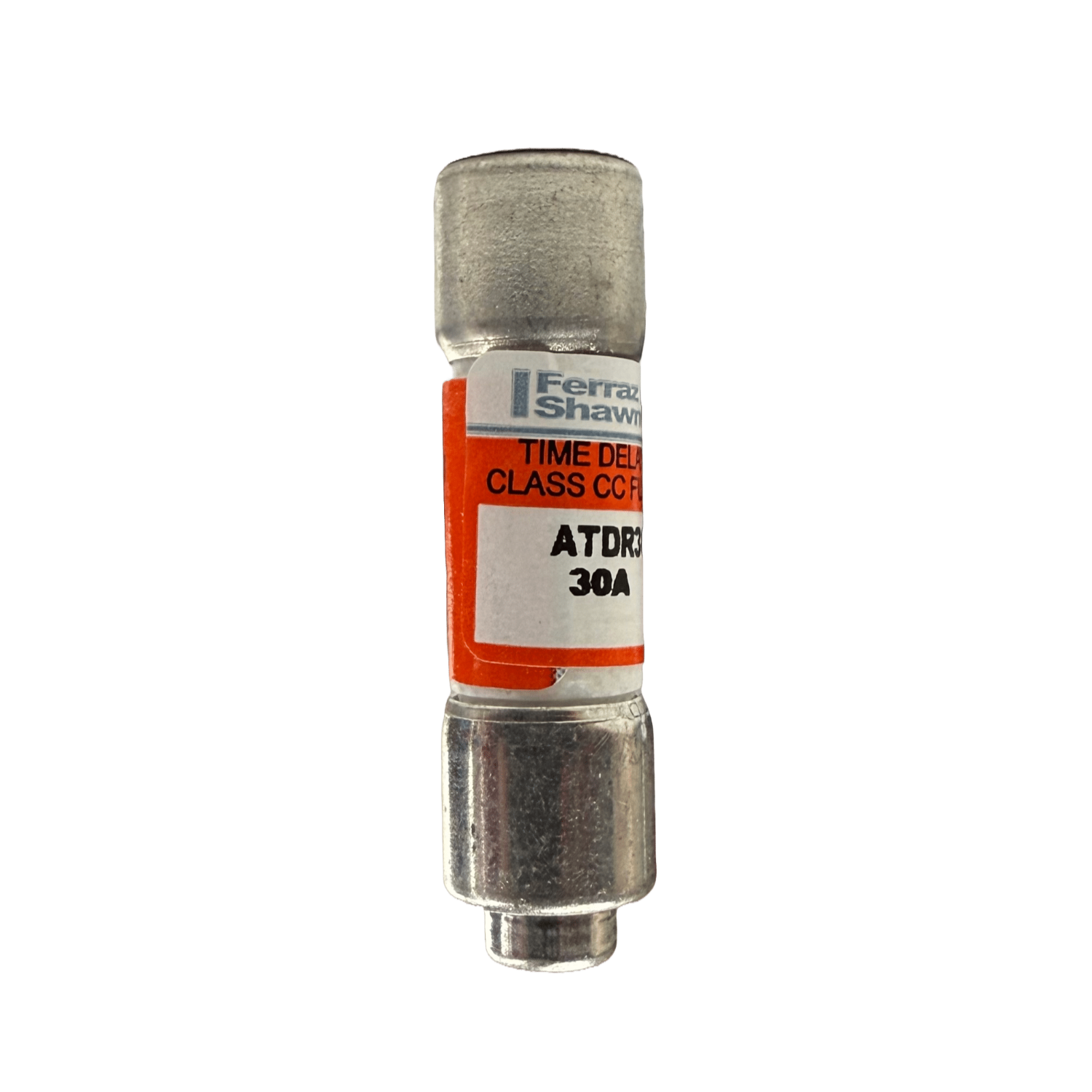

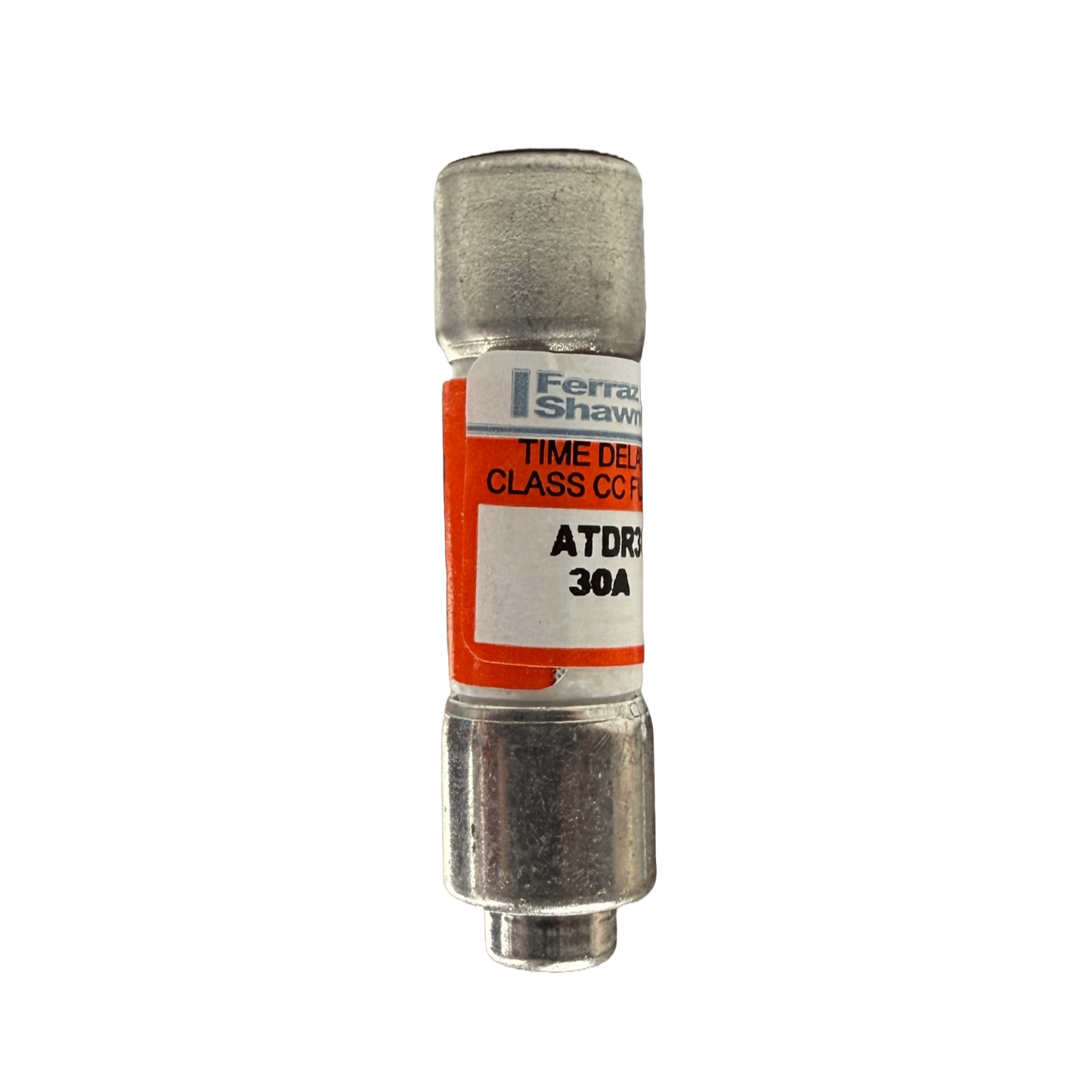

• Mersen ATDR30 Fuse, Class CC, 30 Amp, Front view

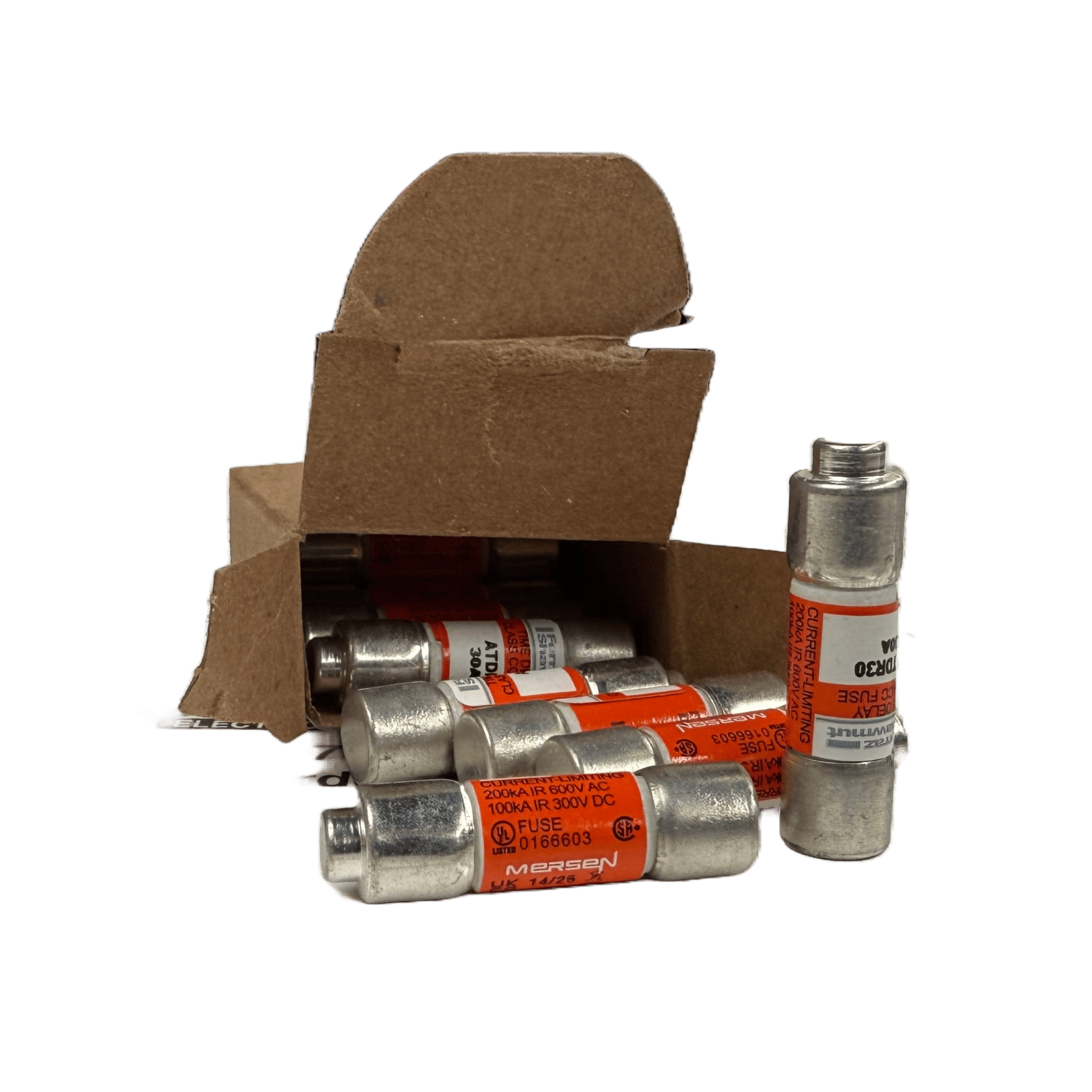

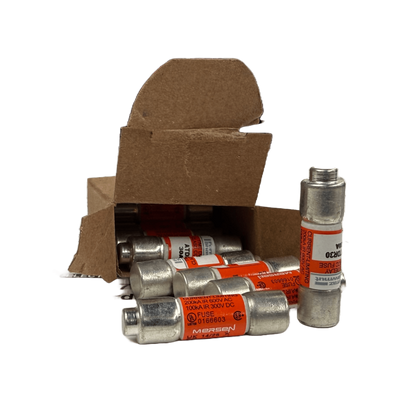

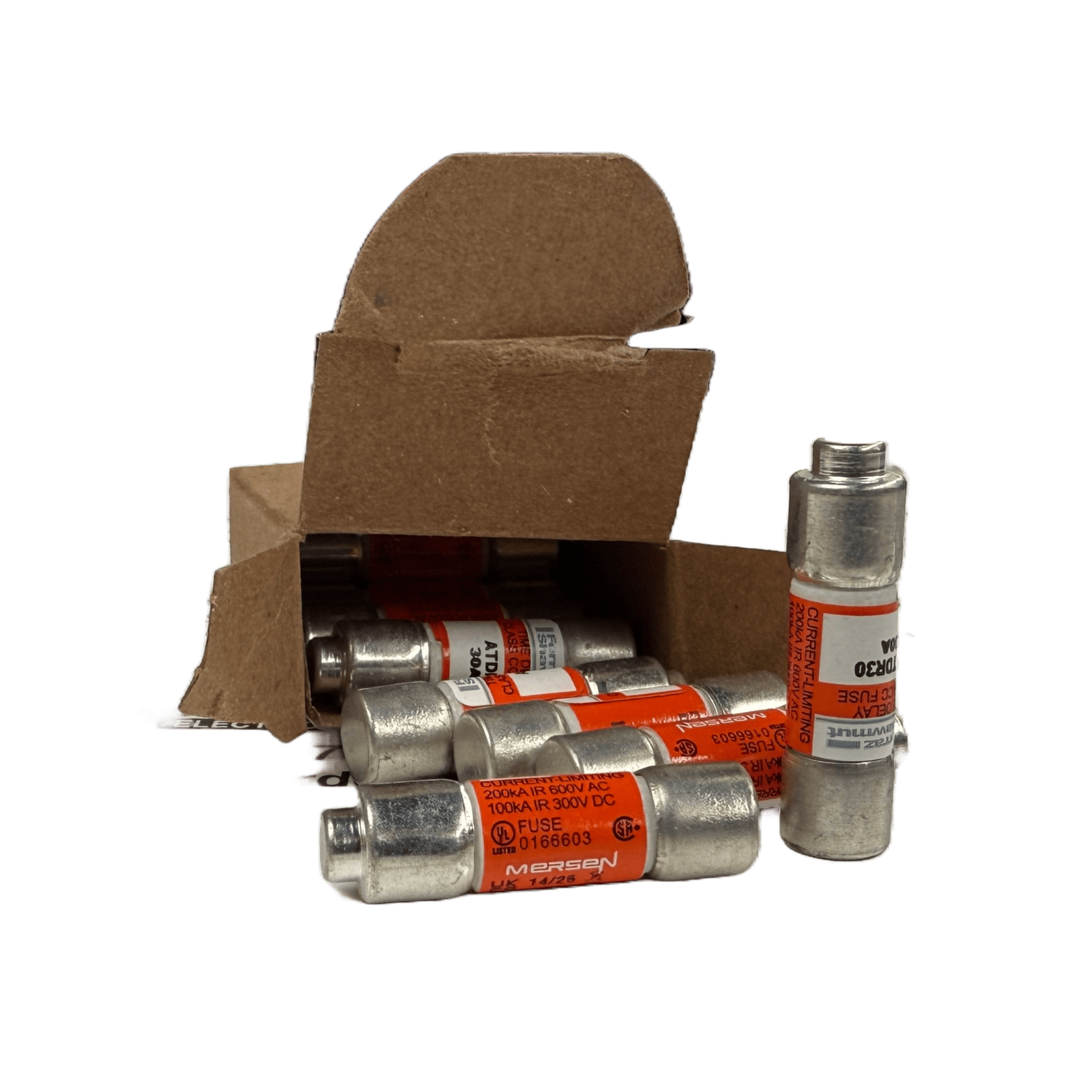

  • Mersen ATDR30 Fuse, Box of 10

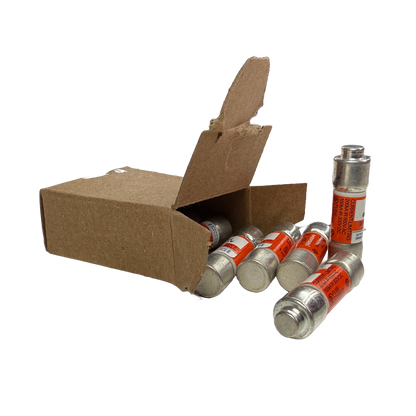

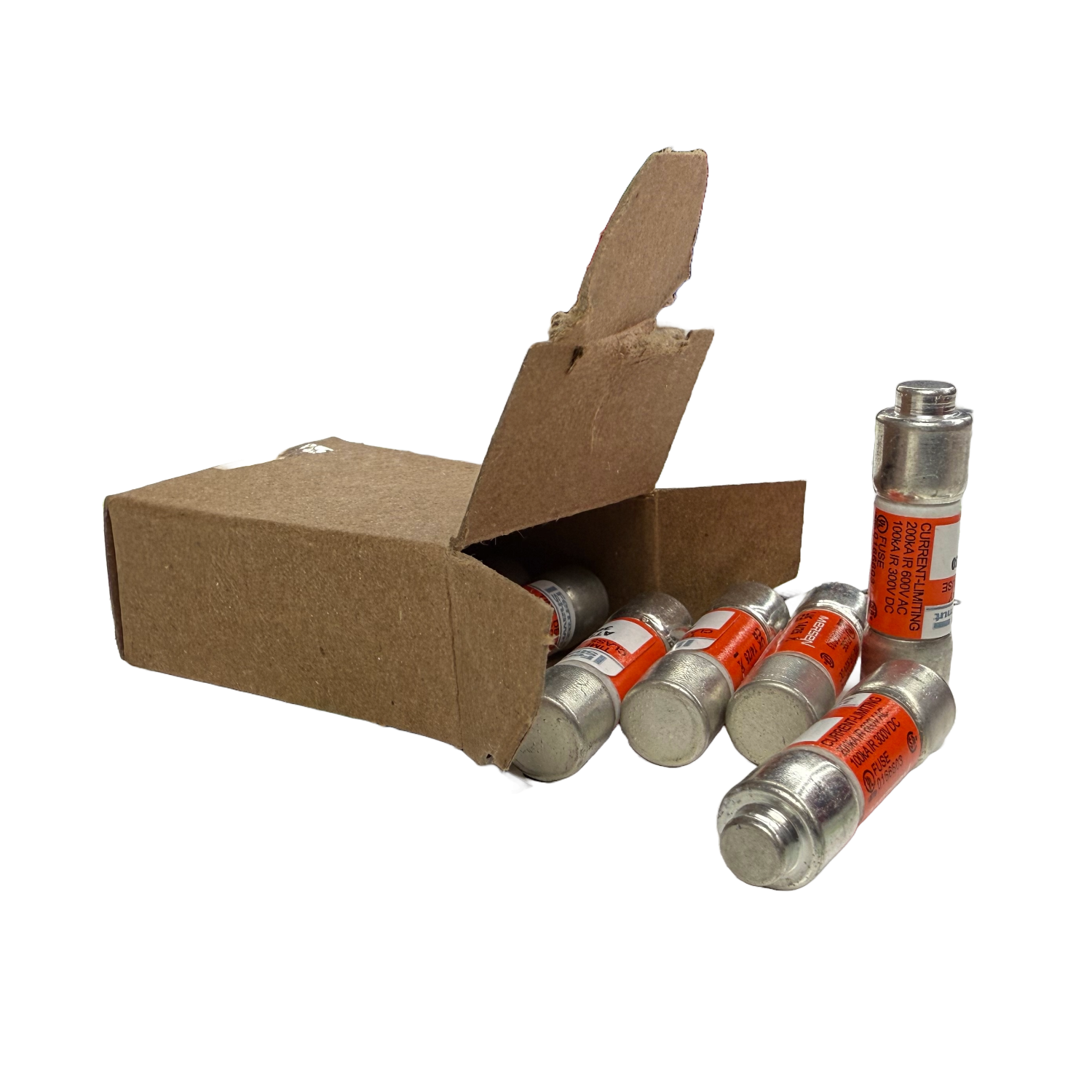

  • Mersen ATDR30 Fuse, 10 Pack, Class CC, 30 Amp, Open Box Side View
  • Mersen ATDR30 Fuse, 10 Pack, Class CC, 30 Amp, Open Box Front View
1 4
Mersen Logo

ATDR30

Mersen ATDR30 - Class CC Time-Delay Fuse 30A 600VAC

Mersen ATDR30 - Class CC Time-Delay Fuse 30A 600VAC

$7.98 CAD
$10.00 CAD $7.98 CAD
Sale Sold out

346 in stock

The Mersen ATDR30 is a 30 Amp Class CC time-delay fuse designed for superior protection of sensitive branch circuit components and small motors. With IEC Type 2 “no damage” protection, this fuse minimizes the risk of fault-related damage, ensuring safety and reliability in industrial and commercial electrical applications.

Featuring the best time-delay characteristics in its class, the ATDR30 fuse offers excellent cycling capability for small motor loads, making it ideal for installations requiring high-performance overcurrent protection.

Specifications

Brand Mersen / Ferraz Shawmut
Series ATDR Amp-Trap 2000®
Fuse Class Class CC
Amperage Rating 30 Amp
Voltage Rating 600VAC / 300VDC
Interrupting Capacity 200kA @ 600VAC
Response Type Time Delay
UPC 782001908706
Standards UL Listed, CSA Certified, RoHS Compliant

View full details

Technical Specifications

Fuse Series:
ATDR
Amperage Rating:
30A
Fuse Class:
Class CC
Voltage:
600VAC, 300VDC
Fuse Response Type:
Time-Delay
Current Rating (SCCR):
200kA
Fuse Length:
1.5 in
Material:
Tin-plated Copper
UPC:
782001908706
Manufacturer type:
Genuine
Item condition:
New
