ATDR5-6/10

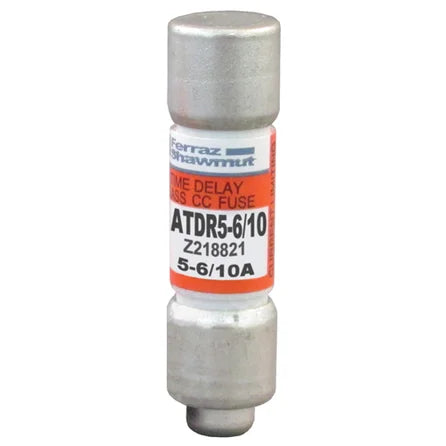

Mersen ATDR5-6/10 - Class CC Fuse - Time-Delay 5-6/10A 600VAC

Mersen ATDR5-6/10 - Class CC Fuse - Time-Delay 5-6/10A 600VAC

$15.00 CAD
$15.00 CAD
Oferta Agotado

En existencias

The Mersen ATDR5-6/10 Amp-Trap 2000® is a Class CC time-delay fuse designed for superior protection of sensitive branch circuit components and small motors. With IEC Type 2 “no damage” protection, this fuse minimizes the risk of fault-related damage, ensuring safety and reliability in industrial and commercial electrical applications.

Featuring the best time-delay characteristics in its class, the ATDR fuse offers excellent cycling capability for small motor loads, making it ideal for installations requiring high-performance overcurrent protection.

Specifications

Brand Mersen / Ferraz Shawmut
Series ATDR
Fuse Class Class CC
Amperage Rating 5-6/10A
Voltage Rating 600VAC / 300VDC
Interrupting Capacity 200kA at 600V AC
Response Type Time Delay
Standards UL Listed, CSA Certified, RoHS Compliant

Ver todos los detalles

Technical Specifications

Fuse Series:
ATDR
Amperage Rating:
5.6A
Fuse Class:
Class CC
Voltage:
600VAC, 300VDC
Fuse Response Type:
Time-Delay
Current Rating (SCCR):
200kA
Fuse Length:
38.1 mm
Material:
Tin-plated Copper
UPC:
782001908577
Manufacturer type:
Genuine
Item condition:
New
