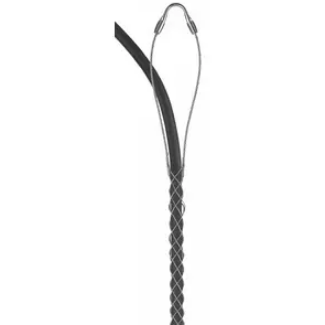

Support Grips, Single Eye, Single Weave, Closed Mesh, Tin-Coated Bronze, 0.75-0.99"
  • Single eye
  • Strand equalizers position wires for equal loading throughout grip length
  • Eye assemblies provide eye reinforcement at support hardware

Closed Mesh

Product Details

General

Application Single Eye
Approx Breaking Strength 1,020 lbs
Construction Woven
Material Bronze, Tin Coated
Material - Mounting Hardware Screw Hook or Beam Clamp
OEM Brand Name Hubbell Wiring Device-Kellems
Performance
  • Mechanical - Approximate Breaking Strength - 1,020 (4,537) Lbs. (N)
  • Mechanical - Working Load - 102 (453.7) Lbs. (N)
Series Standard Duty
Style Closed Mesh, Single Weave
Type Single Eye
UPC 783585301006

Conductor Related

Cable Diameter Range 0.75 in-0.99 in
Cable Size .75"-.99" (1.90-2.51)

Certifications and Compliance

Industry Standard(s) CSA Certified

Conductor Related

Cable Diameter Range 0.73 in-0.85 in
Cable Size .73"-.85" (1.85-2.16)

Certifications and Compliance

Industry Standard(s) UL Listed
