Ideal

SKU:30-454

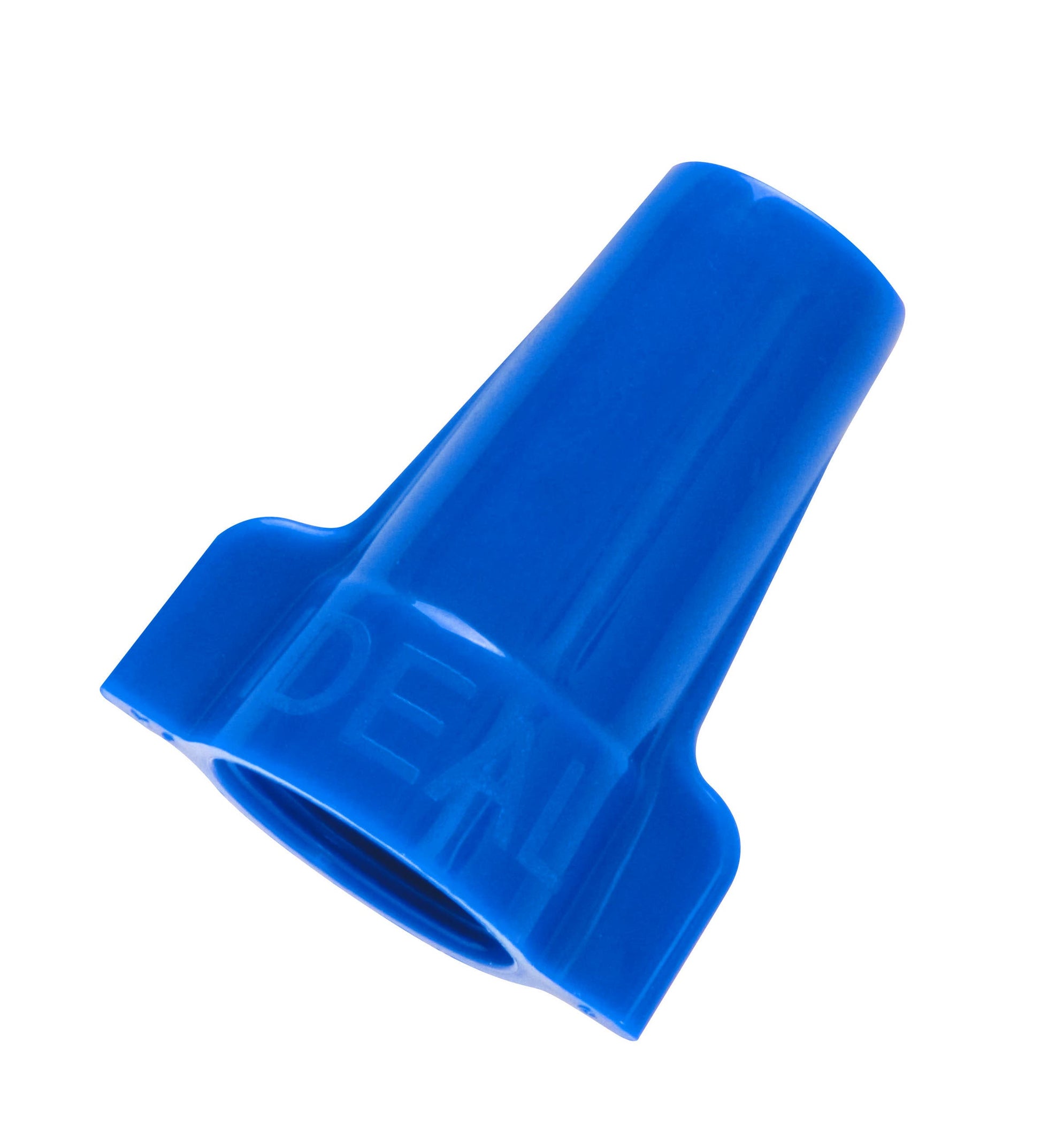

IDEAL 30-454 Wing Nut® Twist-On Wire Connector

IDEAL 30-454 Wing Nut® Twist-On Wire Connector

Regular price $1.80 CAD
Regular price Sale price $1.80 CAD
Sale Sold out
Quantity

200 in stock

Product Details

30-454 BLUE WING NUT


Wing-Nut Wire Conn, Model 454 Blue, 50/Box
Twist-On Wingnut, Insulated, Blue Insulation Color, +221 °F Operating Temperature, 1 to 6 Conductors, 600 V Ac, 0.02 LB


Technical Specifications

Product Ratings UL94-V2
Description TWIST-ON WINGED WIRE CONNECTOR
Mfr Part # 30-454
Csa / Ul Approved CSA/UL APPROVED
Manufacture IDEAL
Unit of Measure EACH
Carton Qty. 50
Additional Description APPROVED for 600V CIRCUIT & 1000V FIXTURE or SIGN CONNECTIONS
Height 1-15/32 In. (37.5mm) HIGH
Colour BLUE
Spring Type LIVE ACTION, SQUARE WIRE
Trade Mark WING-NUT
Std. Package Qty. 250
Max Operating Temp or PSI 105 Deg. C (221 Deg. F) Max.
Cable Range Main (End A) MIN. 3#12 - MAX. 2#6 & 1#12
Price Per C
Cable Size (Awg) or Capacity #14 AWG To #6 AWG
Put-Up BOX
Minimum Wire Combination Size (3) #12
Maximum Wire Combination Size (1) #6, (2) #8
