SKU:4/0RW90WH

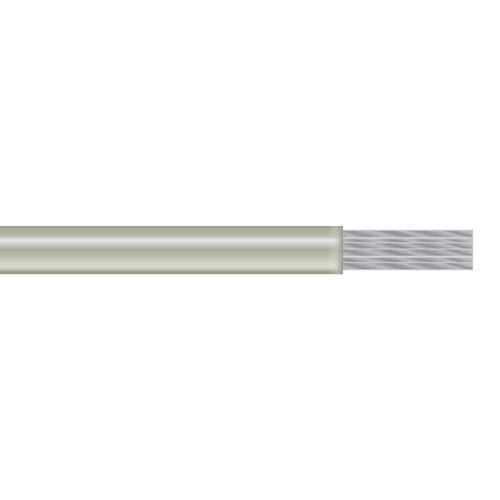

4/0 RW90 Aluminum - White
4/0 RW90 Aluminum - White
- Minimum recommended installation temperature is minus 40°C (with suitable handling procedures).
- The maximum allowable conductor temperature for RW90 is 90°C.
- Maximum voltage rating for all intended applications is 600V.
Wire Gauge Size | 4/0 AWG | Stranded/Solid | Stranded |
Number of Strands | 19 | Conductor Material | Aluminum |
Insulation Material | XLPE | Jacket Material | PVC |
Jacket Color | White |
Voltage Rating | 600 V |
Outside Diameter | 14.732 mm | Insulation Thickness | 1.397 mm |
Amperage Rating | 180 - 205 A | Weight | 357 kg/km |
Weight per 1000 Foot | 245 lb | Temperature Rating | -40 to 90 °C |
Standards | CSA C22.2 No. 38, CSA File Number 157657 | Application | For Raceways, Dry, Damp or Wet Locations, Direct Burial in the Earth |
