Carlo Gavazzi

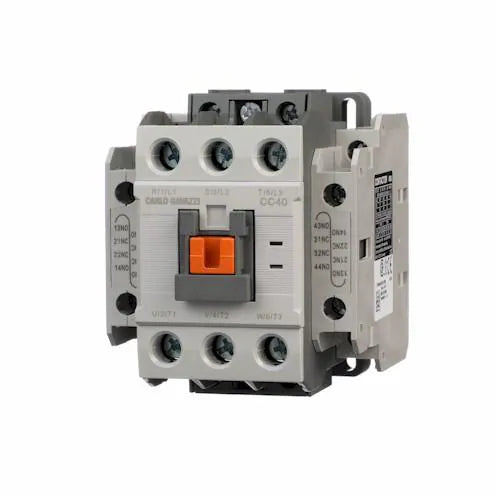

CC40SA120

CC40SA120

CC40SA120

$146.60 CAD
$146.60 CAD
Sale Sold out

Low stock: 2 left

3P CONT S 120V 50/60Hz 2NO2NC

Specifications
Manufacturer Part Number CC40SA120
Item Number CC40SA120
Manufacturer Carlo Gavazzi
Product Series CC
Family Series Carlo Gavazzi Contactors, CC Series
Coil Voltage 120 VAC
Coil Type Magnetic
Poles 3NO
Auxiliary Contacts 1NO, 1NC
Termination Screw
General Purpose (AC1) 40 A
UL Motor Switching (AC3) 60 A
Max HP 120V 1PH 3 hp
Max HP 230/240V 1PH 7.5 hp
Max HP 200/208V 3PH 15 hp
Max HP 230/240V 3PH 15 hp
Max HP 460/480V 3PH 30 hp
Max HP 575/600V 3PH 30 hp
Approvals CSA, cULus, UL
RoHS Yes
Net Weight 1.2 lbs
Gross Weight 1.26 lbs
