Regular price $11.36

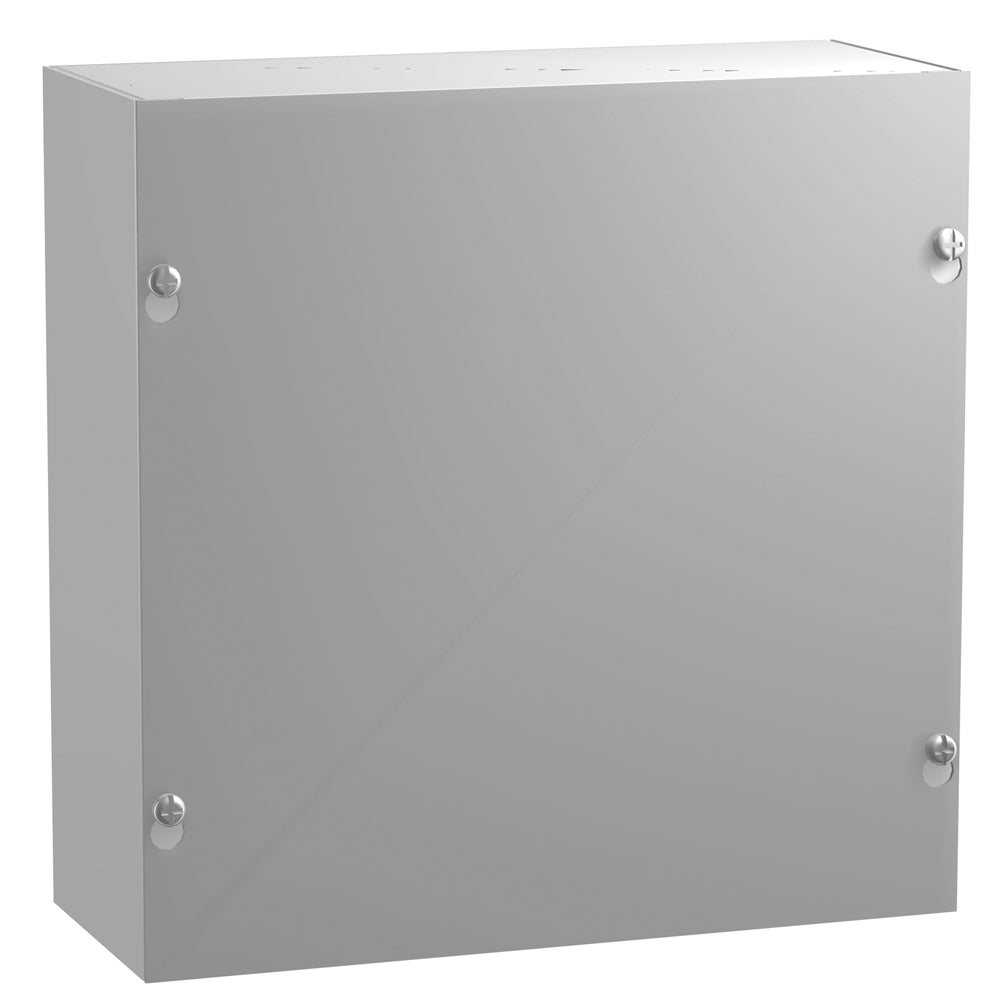

Type 1 Mild Steel Junction Box CSKO Series
Screw Cover and w/ Knockouts 6 in x6 in x 4 in
- Designed for general purpose indoor commercial use as a junction, pull or switch box.
- UL-50 Type 1
- CSA Type 1
- Complies with:
- NEMA Type 1
- IEC 60529, IP20
- Formed and spot welded from 16 gauge (up to 30"x24") or 14 gauge (36"x24") steel.
- Flat steel covers fastened with plated steel screws.
- Keyhole slots permit cover to be lifted off without removing screws entirely.
- Easily removed knockouts on all 4 sides (see drawings for sizes and locations).
- Through holes in back for wall mounting.
- Grounding location embossed in body.
- Enclosure and cover are finished in ANSI 61 gray powder coating.
|Size H x W x D||6 in x 6 in x 4 in
(152 mm x 152 mm x 102 mm)
|Shipping Weight||3 lbs (1.36 kg)|
|UL File #||E65324|
|CSA Cert. #||LR21001|
