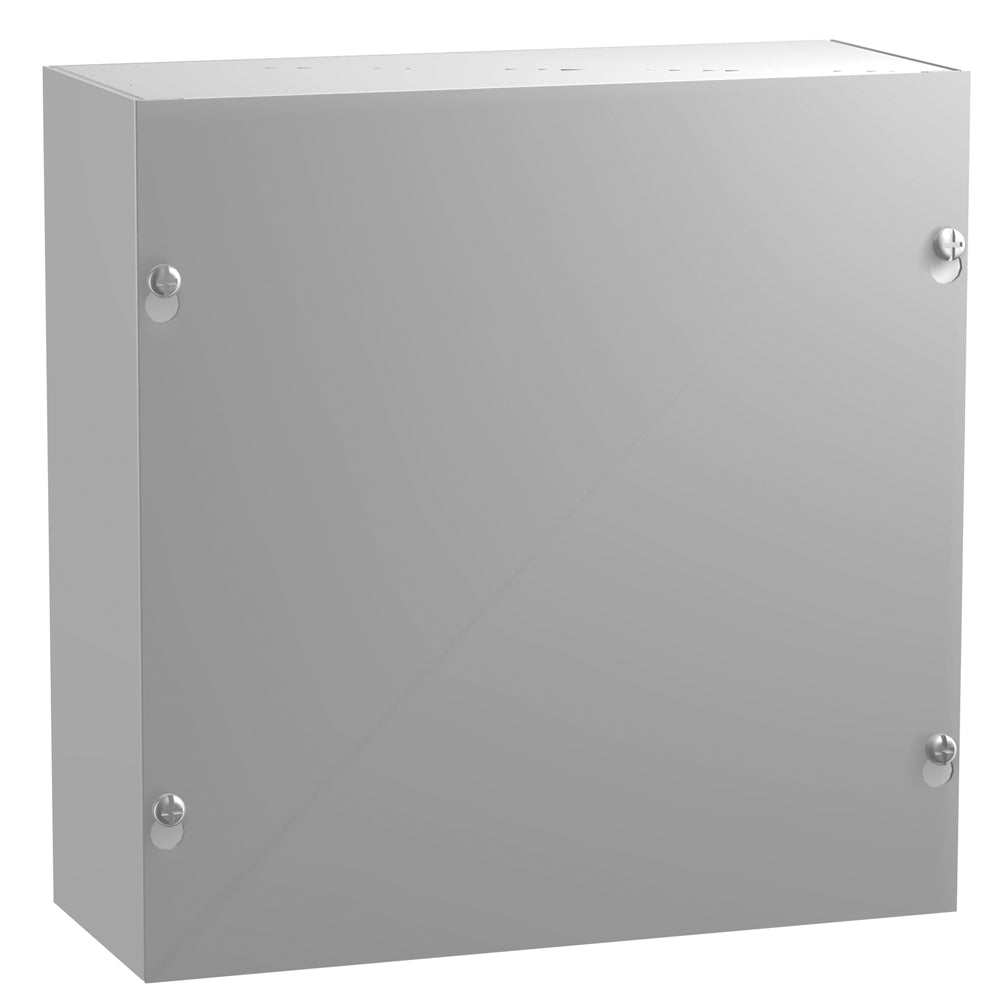

Type 1 Mild Steel Junction Box CSKO Series

Screw Cover and w/ Knockouts 8 in x 8 in x 4 in

Application

  • Designed for general purpose indoor commercial use as a junction, pull or switch box.

Standards

  • UL-50 Type 1
  • CSA Type 1
  • Complies with:
    • NEMA Type 1
    • IEC 60529, IP20

Construction

  • Formed and spot welded from 16 gauge (up to 30"x24") or 14 gauge (36"x24") steel.
  • Flat steel covers fastened with plated steel screws.
  • Keyhole slots permit cover to be lifted off without removing screws entirely.
  • Easily removed knockouts on all 4 sides (see drawings for sizes and locations).
  • Through holes in back for wall mounting.
  • Grounding location embossed in body.

Finish

  • Enclosure and cover are finished in ANSI 61 gray powder coating.
    Size H x W x D 8 in x 8 in x 4 in
    (203 mm x 203 mm x 102 mm)
    Shipping Weight 5 lbs (2.27 kg)
    UNSPSC 39121324
    UPC 623980360126
    UL File # E65324
    CSA Cert. # LR21001
    REACH Compliant Yes
    RoHS Compliant Yes
