Hammond

CSKO16166

CSKO16166

CSKO16166

$59.62 CAD
$59.62 CAD
Sale Sold out

In stock

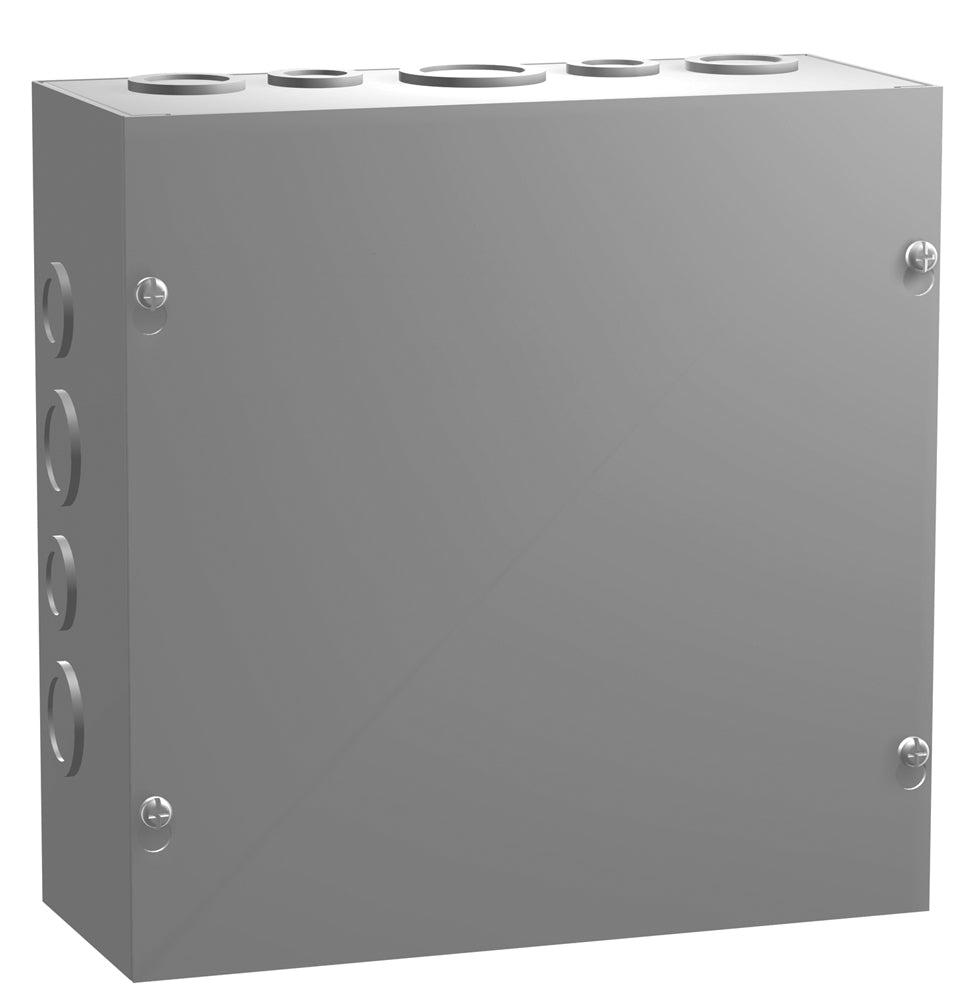

Type 1 Mild Steel Junction Box CSKO Series

N1 Screw Cover and w/ Knockouts 16 in x 16 in x 6 in

Application

  • Designed for general purpose indoor commercial use as a junction, pull or switch box.

Standards

  • UL-50 Type 1
  • CSA Type 1
  • Complies with:
    • NEMA Type 1
    • IEC 60529, IP20

Construction

  • Formed and spot welded from 16 gauge (up to 30"x24") or 14 gauge (36"x24") steel.
  • Flat steel covers fastened with plated steel screws.
  • Keyhole slots permit cover to be lifted off without removing screws entirely.
  • Easily removed knockouts on all 4 sides (see drawings for sizes and locations).
  • Through holes in back for wall mounting.
  • Grounding location embossed in body.

Finish

  • Enclosure and cover are finished in ANSI 61 gray powder coating.
Size H x W x D 16 in x 16 in x 6 in
(406 mm x 406 mm x 152 mm)
Shipping Weight 16 lbs (7.26 kg)
UNSPSC 39121324
UPC 623980360812
UL File # E65324
CSA Cert. # LR21001
REACH Compliant Ye
RoHS Compliant Yes
