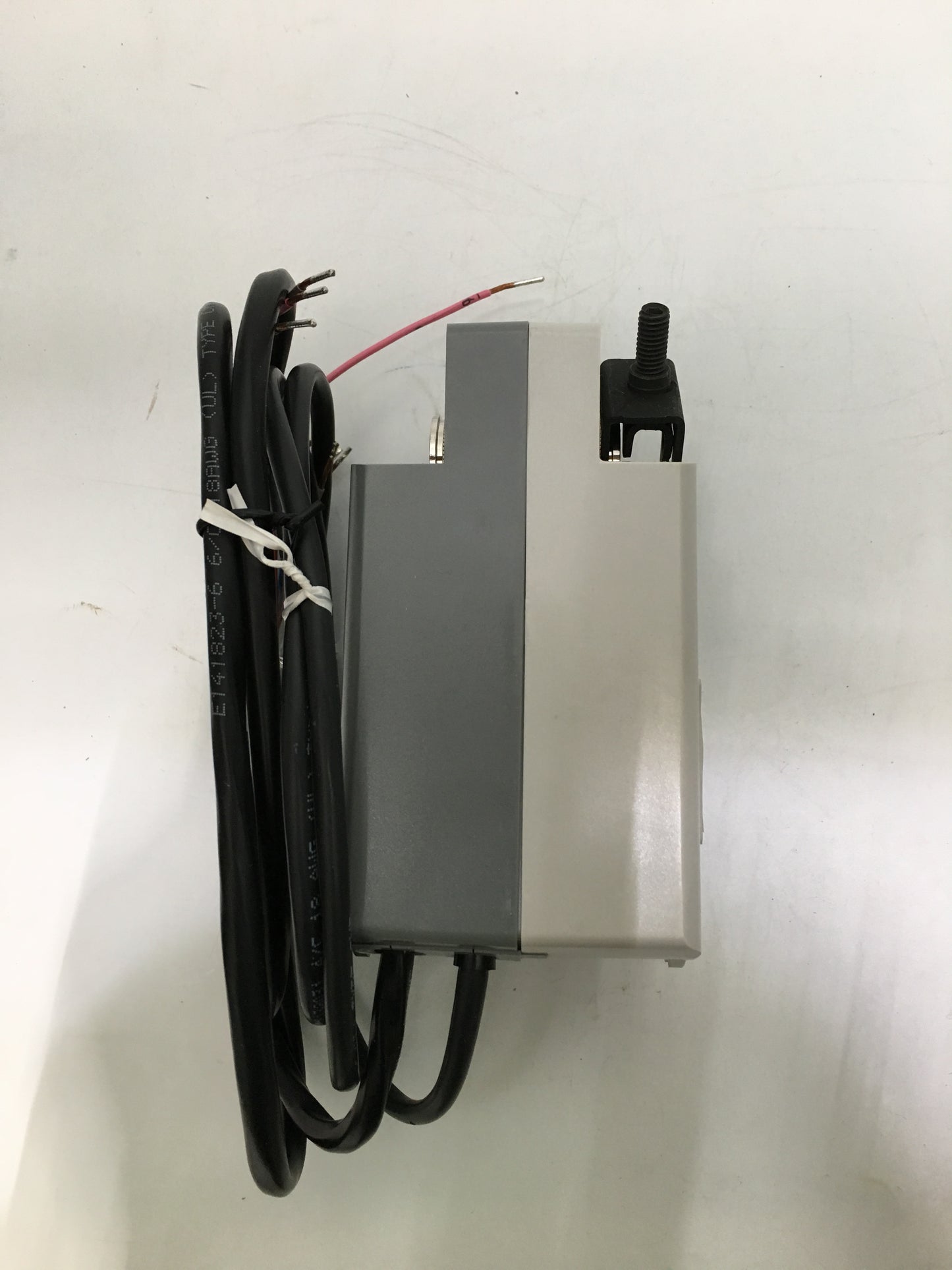

GQD156.1P

OpenAir® GQD Series - Spring Return, 20 lb-in (2 Nm), Rotary Electronic Damper Actuators

The OpenAir GQD Series direct-coupled spring return electronic actuator is designed for modulating, two-position, and floating control of building HVAC dampers.

• Bi-directional spring return (fail-safe)
• Pre-cabled · Plenum-rated models available
• Optional built-in auxiliary switches with fixed switch points at 5° and 85° rotation
• Auxiliary switch units shipped with separate conduit box
• Fast run time
• Signal inversion capability on modulating types (2 to 10 Vdc or 10 to 2 Vdc)
• UL and cUL listed, CE certified
• Compact footprint
• Low voltage models are 24 Vac/dc compatible

GQD156.1P

• Torque: 20 lb-in
• Voltage: 24 Vac/dc
• Control Signals: Modulating 2 to 10 VDC/ 10 to 2 VDC
• Plenum Cabling
• Auxiliary Switch
