ITC Electrical

SKU:401.201

In stock

Replaces ITC part number 400.201

Product Packaging

12

Catalog

Certification

CSA, cURus

Ingress Protection

IP20 (with wire > 10AWG/6mm2 or with IP20 protection accessory)

Weight

57g per pole

Pollution degree:

3

Storage temperature

-40?C to +80?C

Nominal Tightening Torque

2.5 Nm / 22 lb.in Use flat screwdriver 5-6mm or Philips

Rated Impulse Withstand Voltage

6 kV

Rated Power dissipation

3W

Nominal Wire Section

18-8AWG (0.75-16mm2) solid wire / stranded wire (Cu only)

Maximum Fuse Rating

30A

Rated Voltage

750V

Rated Current

32A

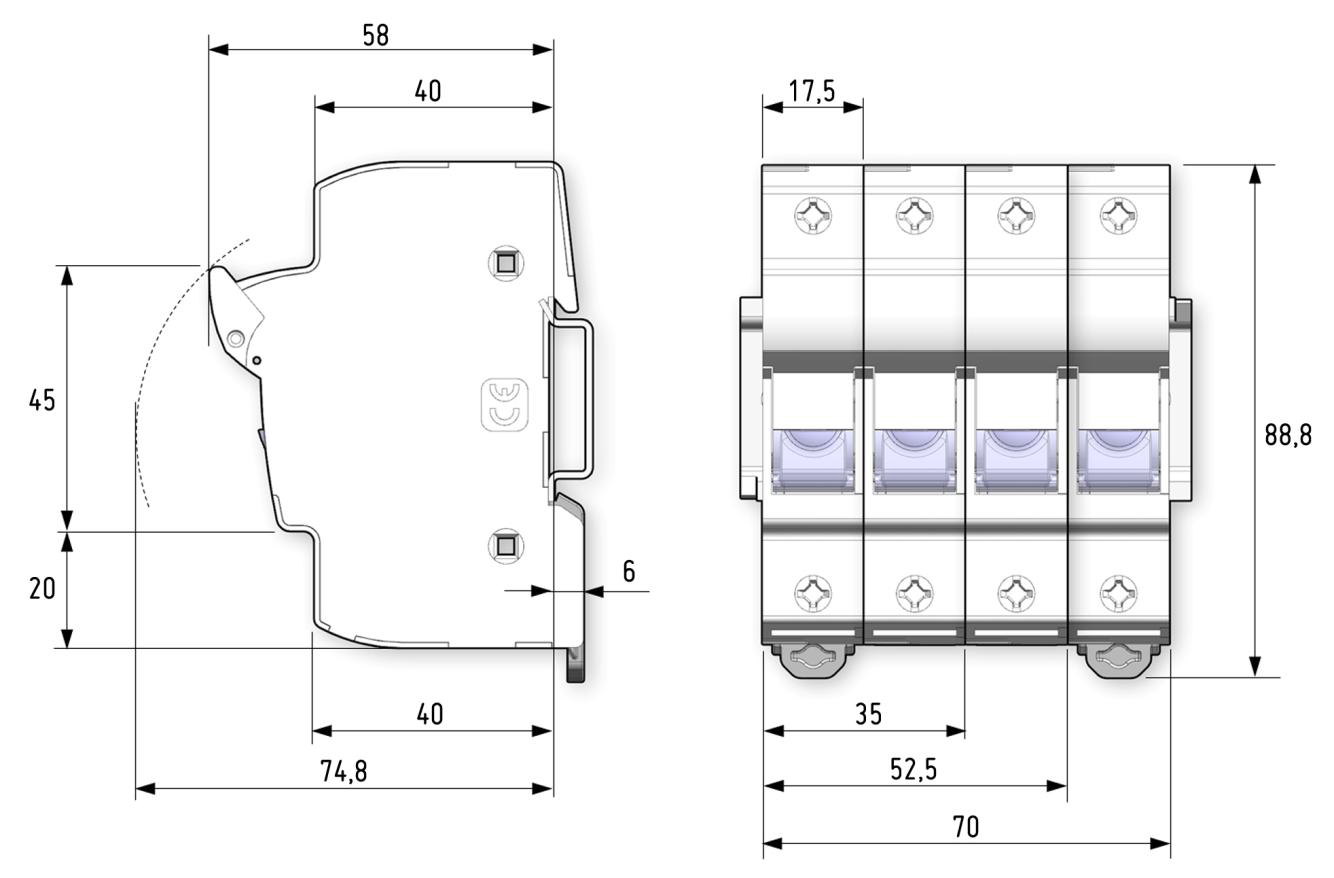

Height, open mm

74.8

Height, closed mm

58

Width mm

17.5
