SKU:JTD250

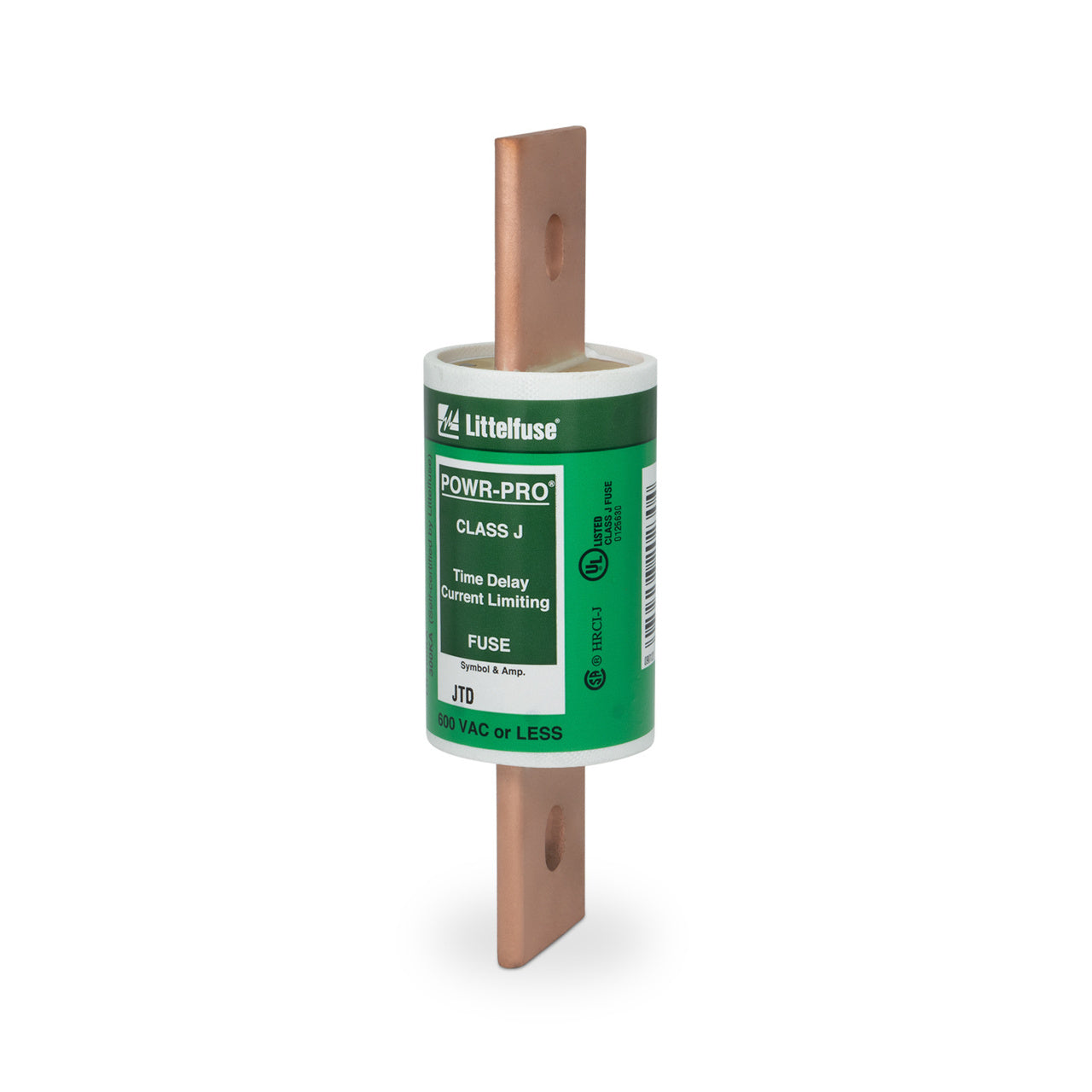

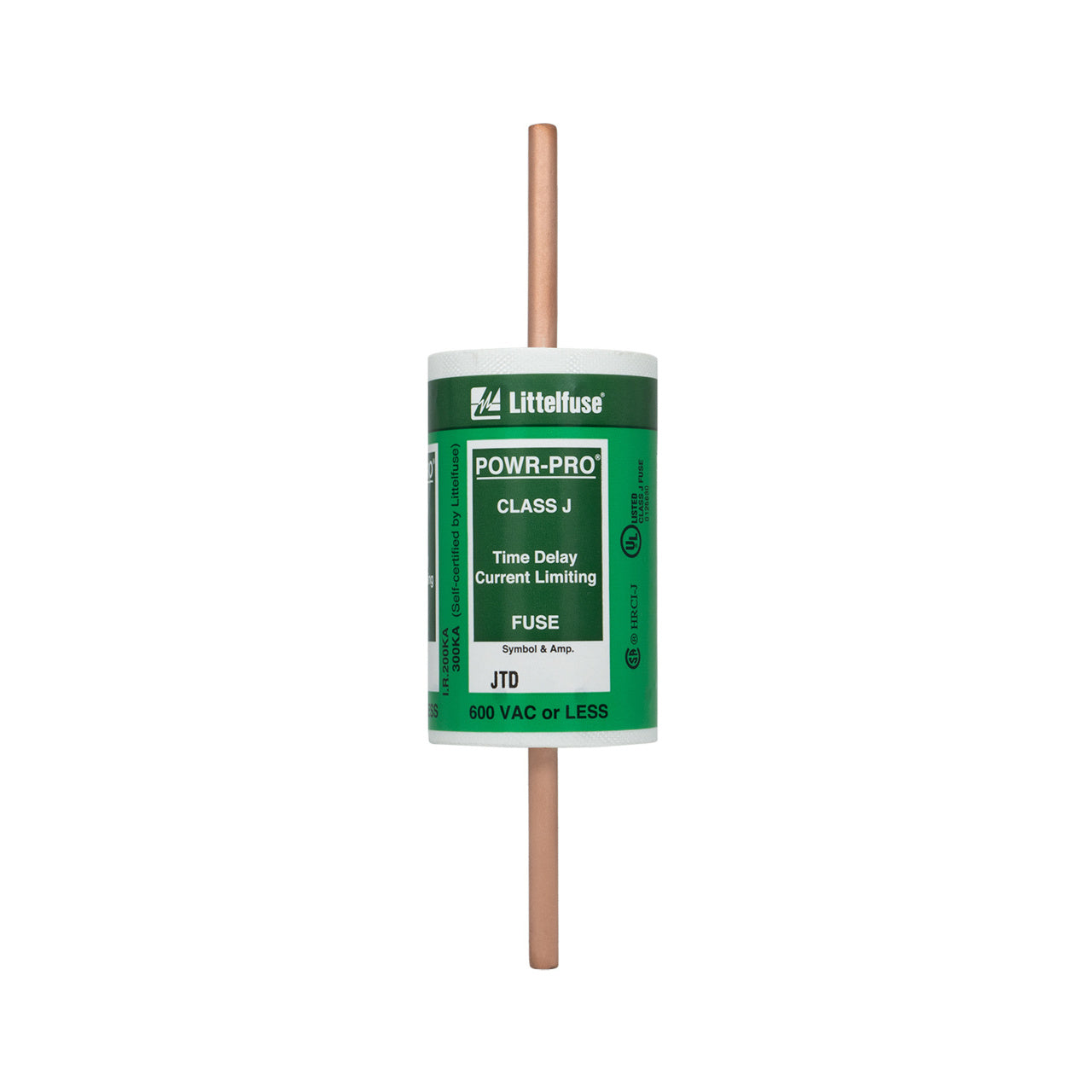

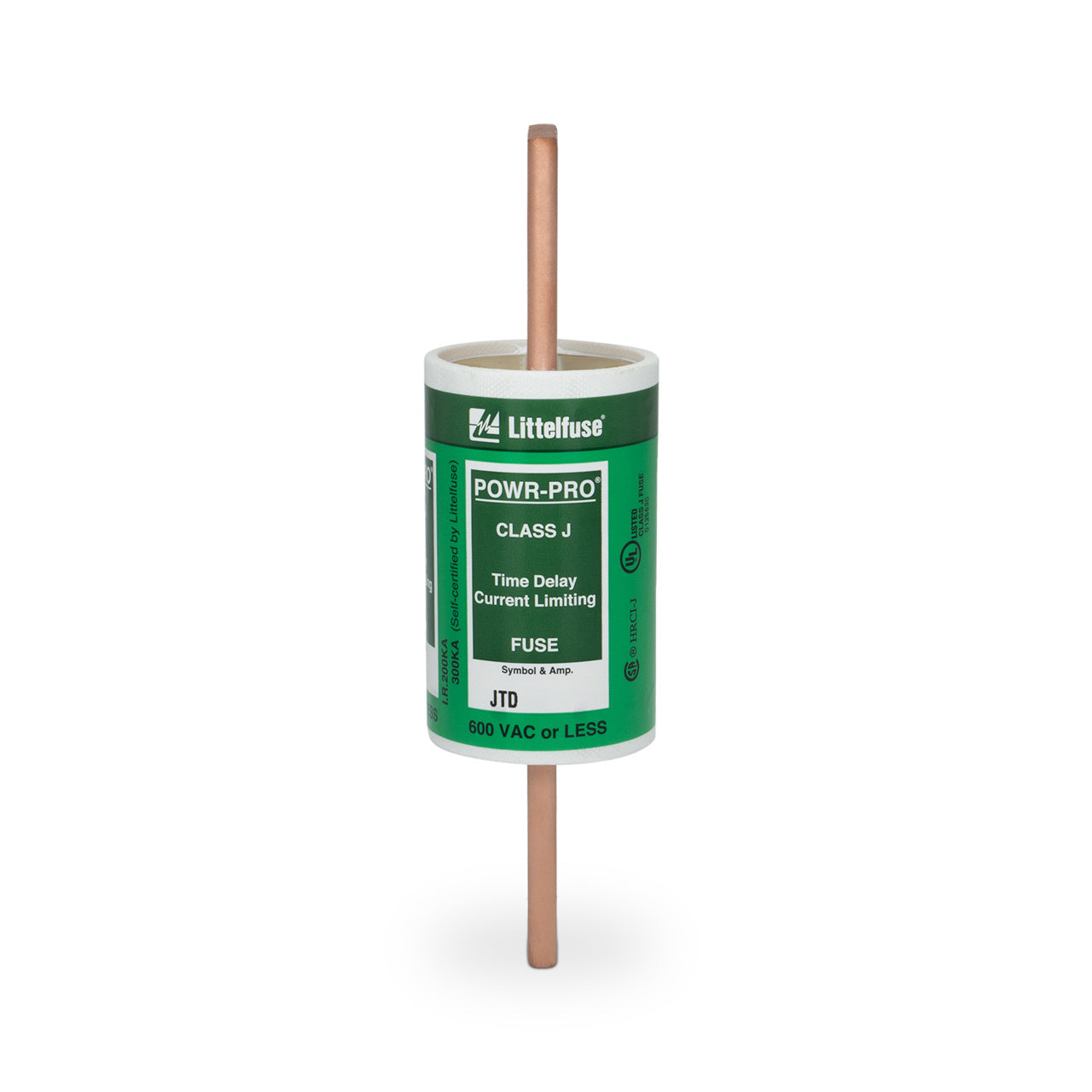

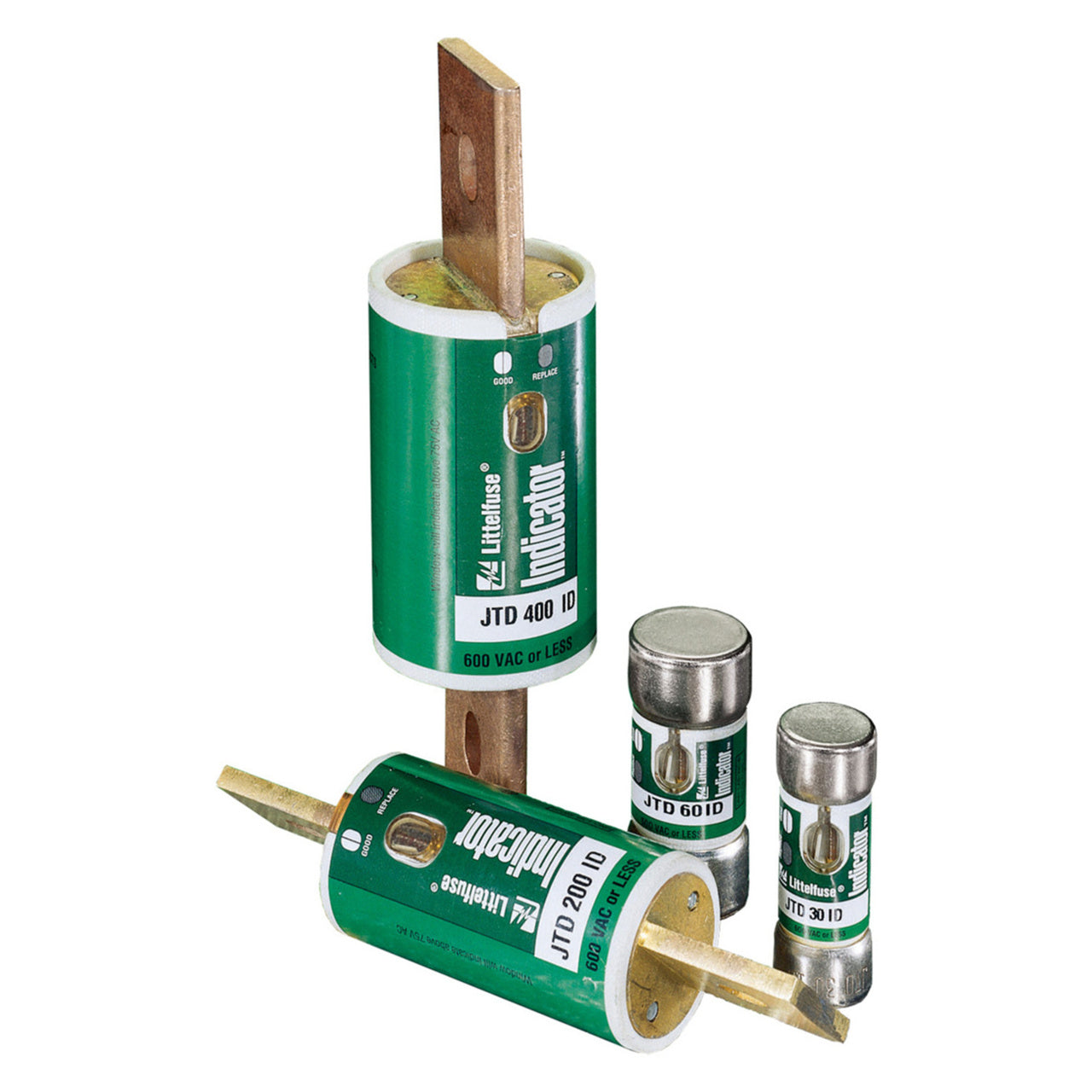

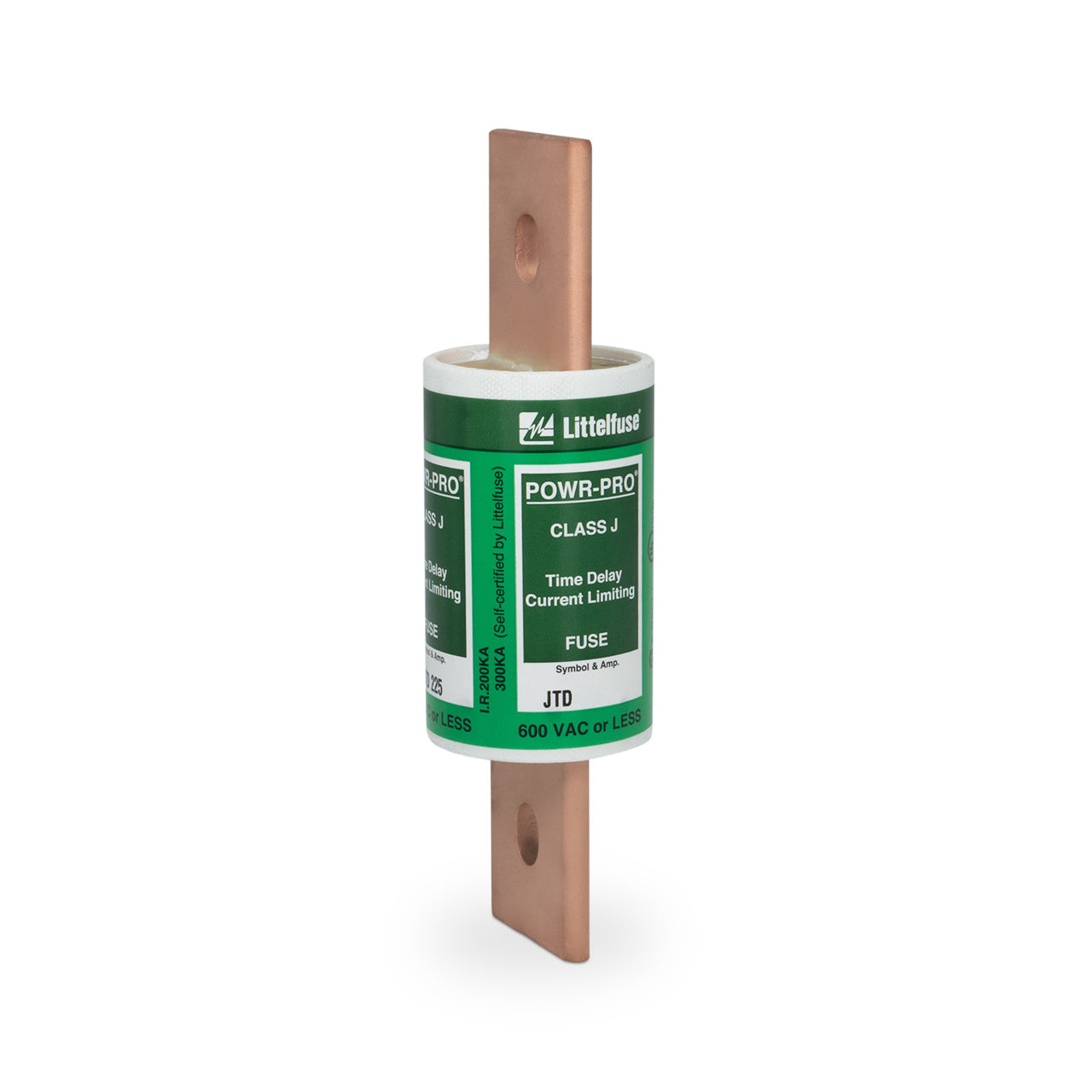

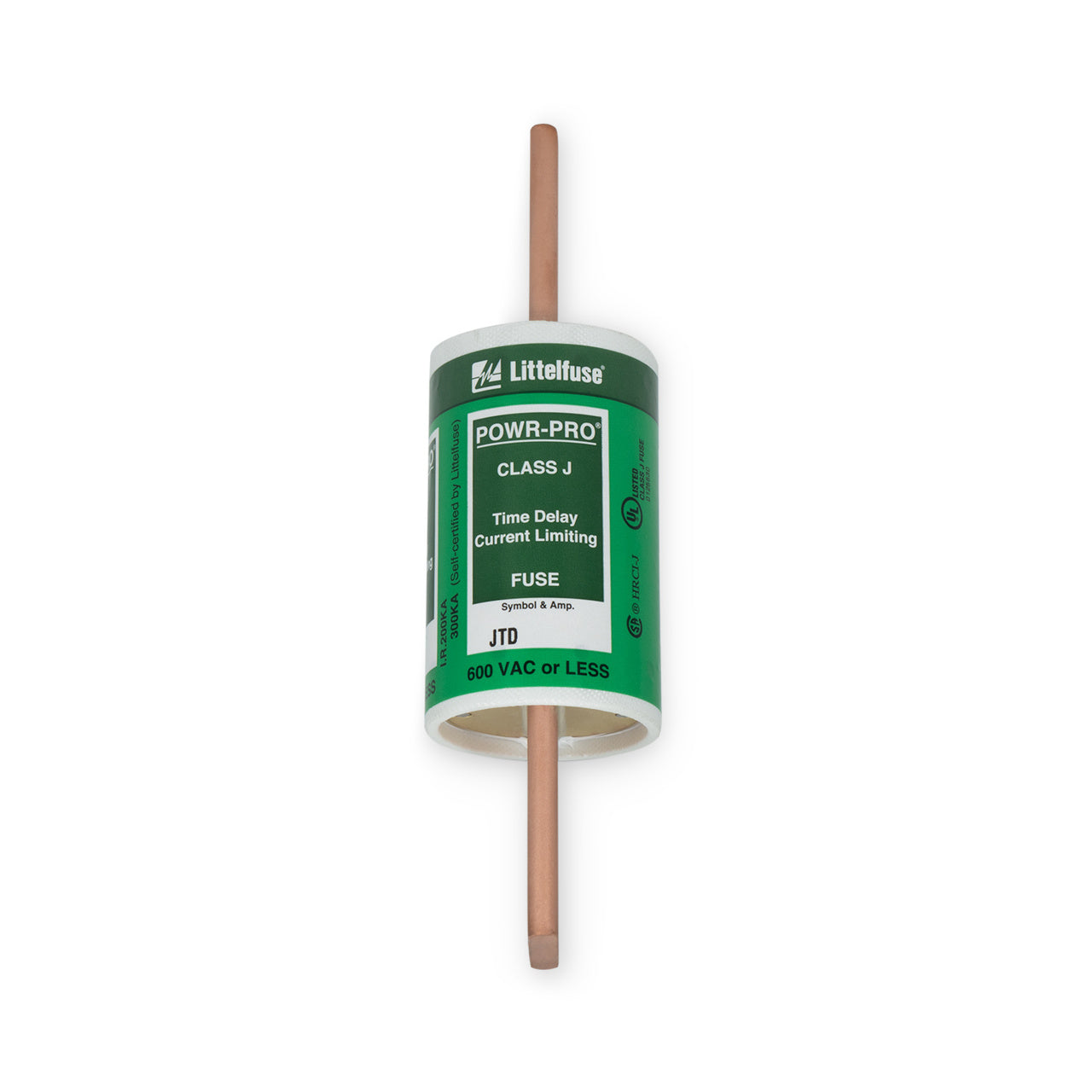

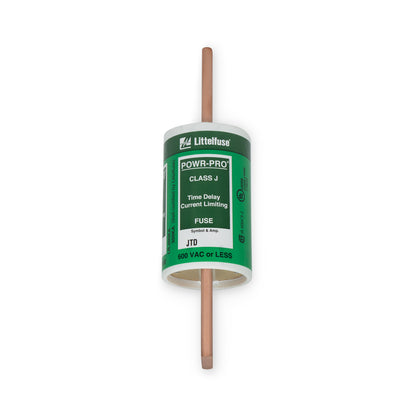

JTD250 | Littelfuse Class J Time-delay Fuse, 200A 600VAC
JTD250 | Littelfuse Class J Time-delay Fuse, 200A 600VAC
Regular price
$195.00 CAD
Regular price
Sale price
$195.00 CAD
Unit price
/
per
Available for backorder
Couldn't load pickup availability
JTD250 is a Class J fuse with an ampere rating of 250 and knife-blade style construction.
Applications
• Motor control centers
• Fused combination motor controllers
• Transformers
• UL listed series-rated molded case circuit breaker panels
• General purpose circuits
Specifications
| Item Number | JTD250 |
| EAN/UPC Code | 07945820231 |
| Rated Voltage (AC) | 600 V |
| Rated Voltage (DC) | 500 V |
| Frequency | 50/60 Hz |
| Ampere Rating | 250 A |
| Fuse Class | Class J |
| Speed/Characteristic | Time Delay |
| Mounting | Clip or Bolted |
| Breaking Capacity (AC) | 200 kA |
| Connection Type | Blade, Brass |
| Body Material | GMG |
| Product Diameter | 54 mm |
| Product Length | 181.1 mm |
| Weight | 0.8119 kg |
Documents
Share
Technical Specifications
Fuse Series:
JTD
Amperage Rating:
250A
Fuse Class:
Class J
Voltage:
600VAC,
500VDC
Fuse Response Type:
Time-Delay
Current Rating (SCCR):
200kA
Fuse Length:
7 in
UPC:
079458202311
Manufacturer type:
Genuine,
OEM
Item condition:
New
