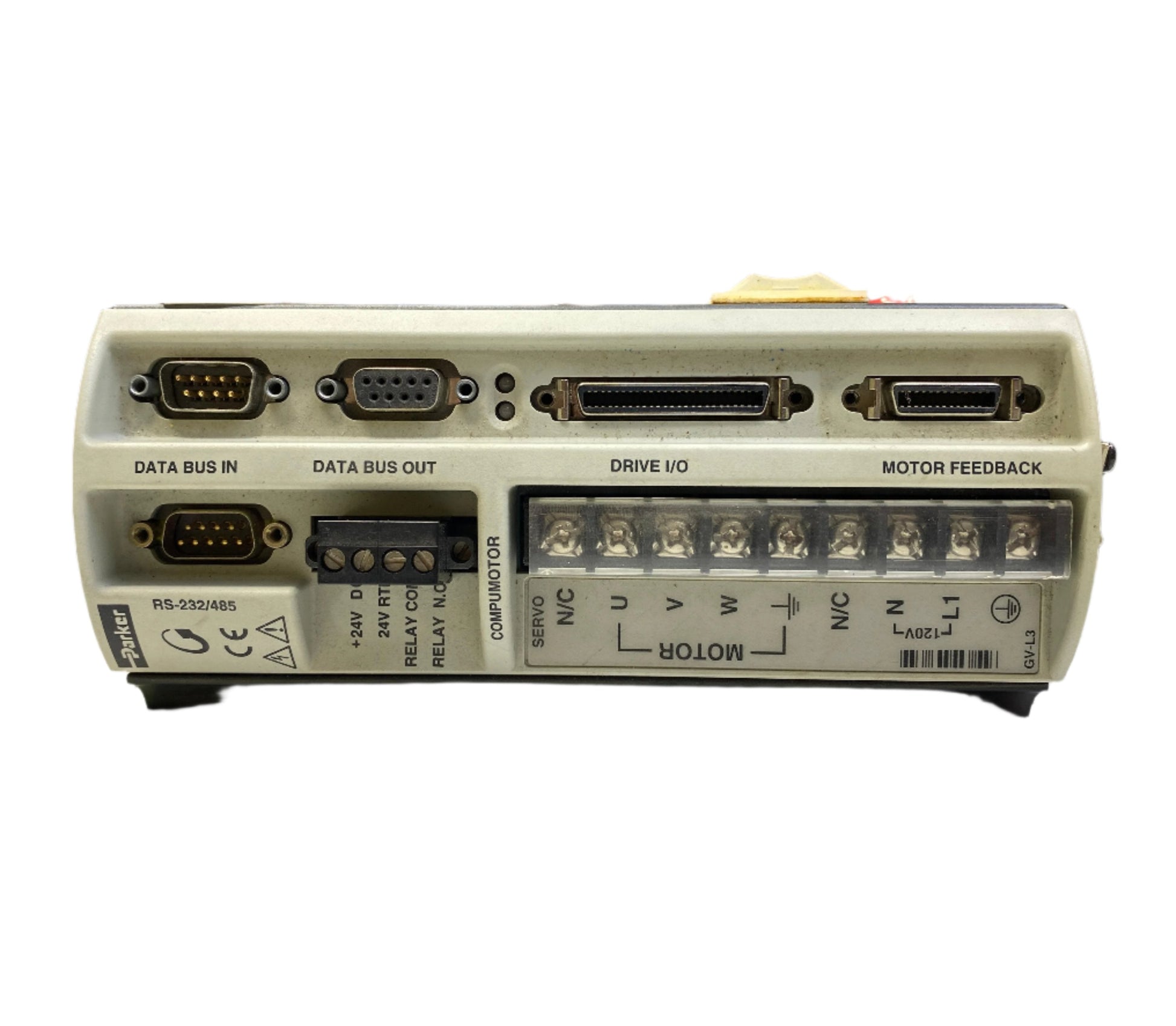

Parker Compumotor GV6-L3E Servo Drive, Gemini GV Series

Product Description

The Parker Compumotor GV6-L3E is a digital servo drive from the Gemini GV Series, designed to provide precise control over servo motors in demanding applications. Although discontinued by the manufacturer, this low-cost, compact drive is still a reliable choice for those needing a basic drive/controller. It offers up to 5.9 kW of continuous power, with a current range of 3/7.5 Amp and features for encoder feedback.

With its simplified tuning and configuration, the GV6-L3E is versatile in handling torque, velocity, step & direction, and CW/CCW modes. The drive is equipped with short circuit protection, brownout protection, and over temperature shutdown for added reliability and safety. The diagnostic LEDs help users monitor drive status, firmware downloads, and optional keep alive mode. It's an excellent solution for applications requiring reliable, efficient motion control.

Key Features

• Power Capacity: Up to 5.9 kW of continuous power
• Modes: Torque, velocity, step & direction, CW/CCW, encoder tracking mode
• Feedback: Encoder or resolver feedback for sinusoidal commutation
• Protection: Short circuit protection, brownout protection, over temperature shutdown
• PWM Frequency: Wide range for linear motor support
• Diagnostic LEDs: For status, firmware downloads, and optional keep alive mode
• Input Power Ranges: 120V, 120/240V, or 240V
• Simplified Configuration: Easy tuning and configuration with variable resolution
• Encoder/Command Input: Variable resolution for encoder output and command input
• Encoder Tracking Mode: For precise feedback and tracking performance
• Compatibility: Suitable for various servo applications with encoder feedback
• Current Rating: 3/7.5 AMP continuous/peak
• Bus Voltage: 170VDC Bus


Product Condition

This product is a used surplus item and comes in alternative packaging. It is fully functional, in excellent condition, and ready for immediate use.

Specifications
