RAB Design
SKU:LFX4-LED60-B-5K-GRY-DIM-FS-N4X

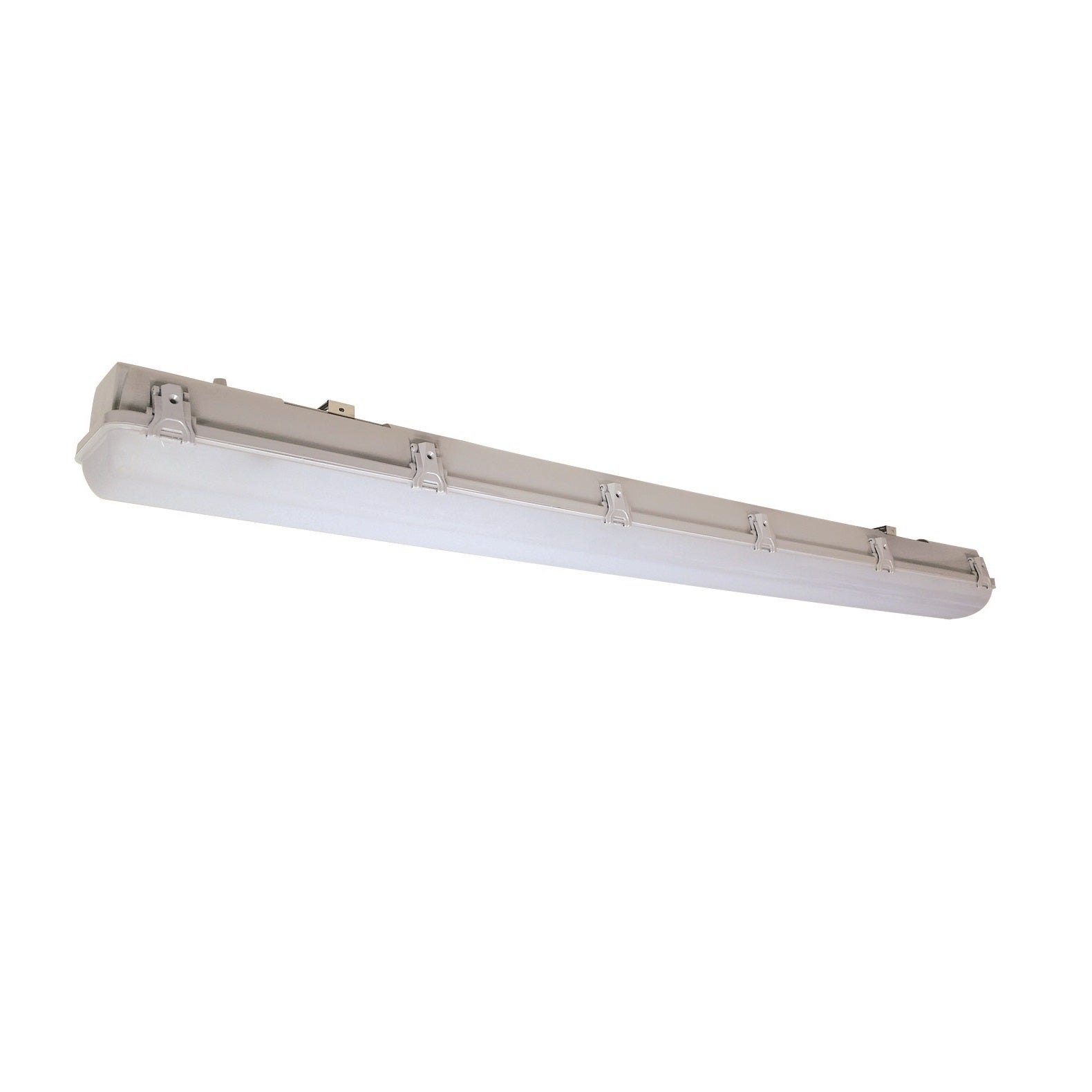

Rab Design 092901 62W Grey 4' Linear Vapourproof fixture | LFX4-LED60-B-5K-GRY-DIM-FS-N4X
Rab Design 092901 62W Grey 4' Linear Vapourproof fixture | LFX4-LED60-B-5K-GRY-DIM-FS-N4X
20 in stock
Couldn't load pickup availability
Trusted & Secure Payments
Trusted & Secure Payments
Shop with confidence! Your transactions are protected with industry-standard encryption for a safe and secure checkout experience.
Free GTA Shipping on Orders Over $250
Free GTA Shipping on Orders Over $250
30-Day Return Policy
30-Day Return Policy
Return Policy
We want you to be completely satisfied with your purchase. If you need to return a product, please review the following guidelines and instructions.
30-Day Return Window: You have 30 calendar days from the date of purchase to initiate a return for eligible items. After this period, unfortunately, we won't be able to offer you a refund or exchange.
Resalable Condition: Returned items must be in their original packaging and in resalable condition to be eligible for a refund or exchange. Please ensure that all accessories, manuals, and any other included items are returned as well.
Exclusions: Please note that certain items are non-returnable. Breakers are considered final sale and cannot be returned or exchanged unless they are or damaged upon arrival. In such cases, please contact our customer support team within 48 hours of receiving the product for further assistance.
Initiating a Return: To initiate a return, please contact our customer support team by email at info@greenbirdes.com or by phone at 1-855-425-7863. Provide your order details and a brief description of the reason for the return. Our team will guide you through the return process and provide you with a return authorization if applicable.
Return Shipping: The cost of return shipping will be the responsibility of the customer, unless the return is due to a defective or damaged item. We recommend using a trackable shipping service and obtaining proof of shipment to ensure a smooth return process.
Refunds: Once your returned item is received and inspected, we will send you an email notification regarding the status of your refund. If your return is approved, a refund will be processed to your original method of payment within 5 business days. Please note that shipping fees are non-refundable once processed.
Exchanges: If you would like to exchange an item, please contact our customer support team to check the availability of the desired product. Once confirmed, we will provide you with further instructions on how to proceed with the exchange.
Description
New and improved IP66 linear vapourproof fixture that is rugged in design, with conduit entries on the back and the side for ease on installation.
Features
Construction

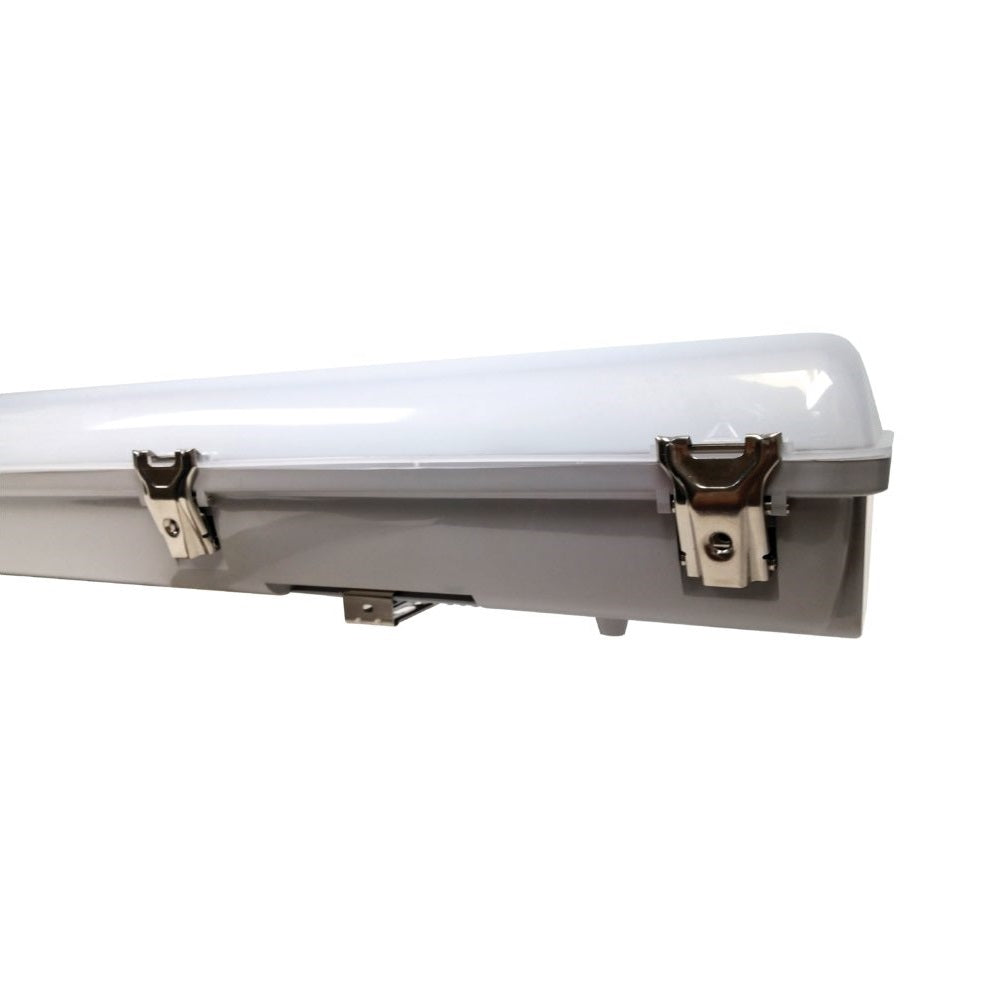

Polycarbonate UV stabilized housing with opal lens. The lens attaches to
the fixture using 6 stainless steel clips on either side. The LFX4-LED60
is ideal for mounting heights between 8’ – 10’ creating a wide even light
distribution because of its rounded opal lens.
Lens
Fixture has a high grade polycarbonate lens that is UV stabilized.
LED information
The fixture contains a high efficiency LED strip that delivers a total
output of 5,379 lumens at an efficacy of 134 lumens/watt. LEDs have
a colour temperature of 4000K as standard, 5000K is available as an
option.
Finish
Grey Polycarbonate Finish
Electrical
Total system wattage of the unit is 62W. The standard unit has a high
efficiency driver that operates at 120 - 277V. 347V is available as an
option.
Mounting
Fixture comes with 2 stainless steel mounting brackets that facilitate
quick and easy mounting direct on the wall or ceiling. Additional
mounting options include suspended chain mount.
There are 4 conduit entries on the bottom and one conduit entry on
either side.
Options
• Integrated High Frequency Sensor
• Battery backup
Specifications
SPECIFICATIONS | LFX4-LED40 |
---|---|
Watts (W) | 41 |
Equivalent to | > 3 lamp T5 fluorescent fixture |
Lumens (Lm) | 5,379 |
Voltage | 120-277V, 347V |
Efficacy (Lm/W) | 134 |
Operating Temp. | -40°C to +40°C |
Colour Temp. | 4000K (standard), 5000K (optional) |
Dimming | 0-10V Dim (10% to 100%) |
CRI | >80 |
Power Factor (PF) | 0.9 |
Total Harmonic Distortion (THD) | 14.85% |
LED Life | 100,000 Hours |
Finish | Grey |
Certifications | UL, IP66, DLC Premium, NEMA 4X, NSF, Wet Locations, 5 Year Warranty |
