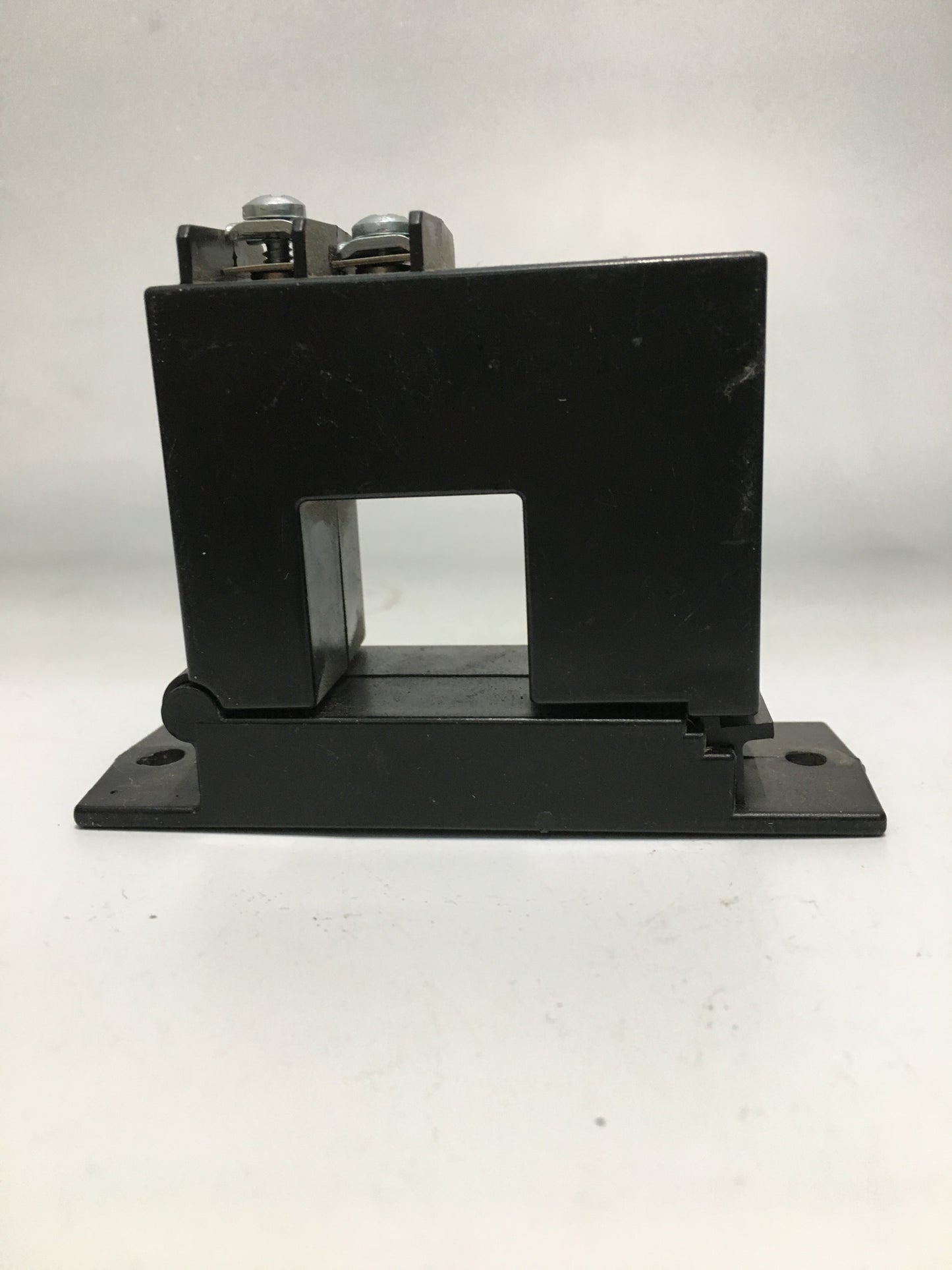

SC100-1

Sentry 100 Series - AC Current Transducers With Voltage Output

The Sentry 100 Series AC Current Transducers with Voltage Output can be used to directly monitor up to 200A and output a 0-5 VDC or 0-10 VDC signal. The Sentry 100 Series is available in a split-core design that allows for easy installation of the transducer on existing wiring or in a lower-cost solid-core version.

• Output:0-5 VDC or 0-10 VDC
• Accuracy:+/-1% FS over 5-100% of range
• Loading:1 M-ohm required for rated accuracy; 100 k-ohm load add 1.3% error
• Power supply:None required
• Frequency:50-60 Hz
• Isolation:UL Listed to 1270 VAC
• Response time:100 ms, 0-90%
• Operating temp:-58º to 149ºF (-50º to 65ºC)
• Case:Thermoplastic (meets UL flammability rating 94V-0)
