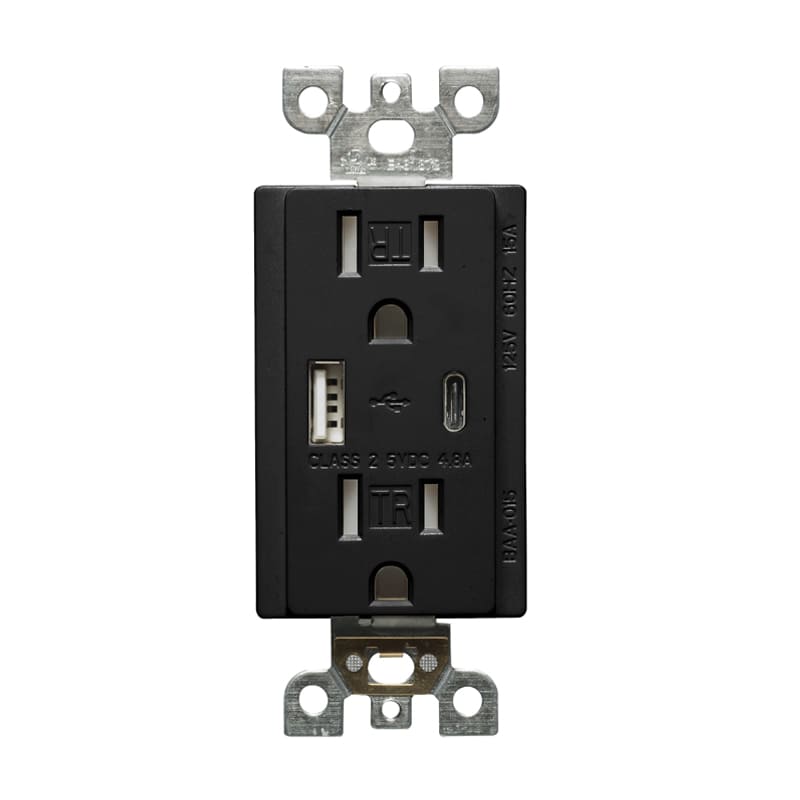

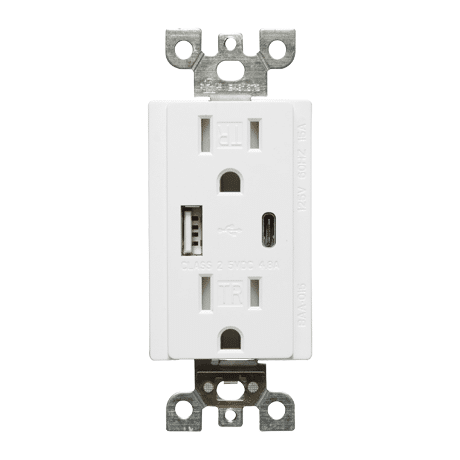

Votatec BAA-015D 20A USB Charger & Duplex Receptacle (TR) TYPE A+C

Product Details

• Model No.: BAA-015D
• Good heat dissipation
• Design of bottom grid, good cooling
• Super high impact resistance and thermal stability
  Cover pans are made of high quality polycarbonate
• Chemical corrosion resistance
  Fingerprint-resistant zinc plated mounting brackets
• Security doors designed to prevent people accidental exposure

Product Specification

• Mechanical life: Unloaded plug≥5000Sec
• UL498 UL943 CSA-C22.2 No.42 USB1.0/2.0/3.0
• Housing material flame retardant grades UL94-V2
• Rated working current: 20A/15A
• Rated working voltage: 125V
• Power Frequency: 60HZ
• USB Voltage & Current: 5VDC 4.8A
• Wire Specifications: #14- #10AWG
• Electric strength: Pressure resistance 1500V 50Hz Duration 1 Min
• Working Temperature: -20°C~60°C
• Insulation resistance: >50MΩ (DC500V)
• If the devices combined power requirements exceed the power capacity of the USB Ports, the charger will automatically shut down to protect your devices.
