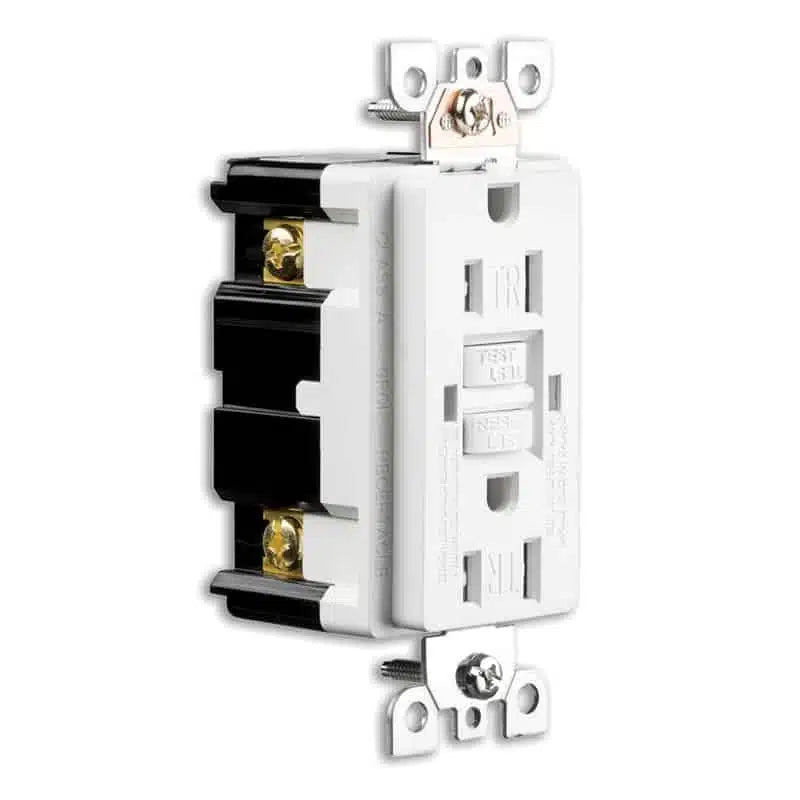

Votatec YGB-094 GFCI(TR) With LED Light

Votatec YGB-094 GFCI(TR) With LED Light

$18.00 CAD
$18.00 CAD
Sale Sold out
Color

  • Model No.: YGB-094
  • YGB-095
  • Good heat dissipation
  • Blade design of copper alloy contacts, good conductivity
  • Super high impact resistance and thermal stability
    Cover pans are made of high quality polycarbonate
  • Chemical corrosion resistance
    Fingerprint-resistant zinc plated mounting brackets
  • Grounding
    One-piece grounding design
  • Security
    Security doors designed to prevent people accidental exposure
  • Mechanical life
    Unloaded plug≥5000Sec Loop detection
    With automatic monitouring function
  • UL498 UL943 CSA-C22.2 No.42
  • Housing material flame retardant grades UL94-V2
  • Rated working current: 15A/20A
  • Rated working voltage: 125V
  • Power Frequency: 60HZ
  • Tripping Threshold: 5mA Tripping time<25m
  • Surge current: 6000V/3000A 6000V/10KA
  • Electric strength: Pressure resistance 1500V 50Hz Duration 1 Min
  • Working Temperature: -35°C~66°C
  • Insulation resistance: >50MΩ (DC500V)
  • Short-circuit current: 10KA
